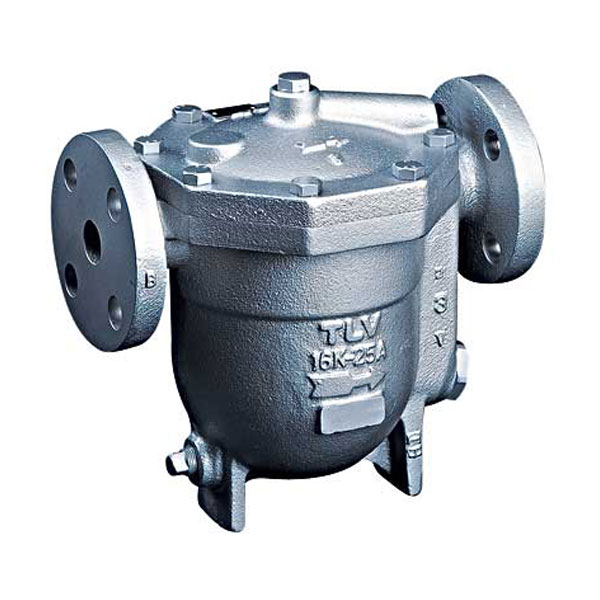

TLV JS7X-10 Free Float Steam Trap, 1in

Screwed Free Float Steam Trap, 1” NPT. Cast Iron Body and Stainless Steel internal wetted components. Threaded BSP connections. Orifice No. 10. Drilled Seat. Max Operating Pressure 150psi. Built in Strainer and Thermostatic Air Vent. Free Float Continuous Discharge Mechanical Steam Trap.
The JS7X is a reliable and durable steam trap with tight shut-off for use on medium size process equipment. The precision ground self-modulating free float provides continuous low velocity condensate discharge even with varying process loads, constant water seal and steam tight sealing even under no load conditions, reduced wear, and a long maintenance free life. The design of the JS7X allows easy inline access to the internal components. The integral thermostatic (x-element) air vent automatically vents air from the system until close to steam pressures are present and the integral strainer ensures extended trouble-free operational life.
